Blast pipe wet-film humidifier
Blast pipe wet-film humidifier
Category:
Detail

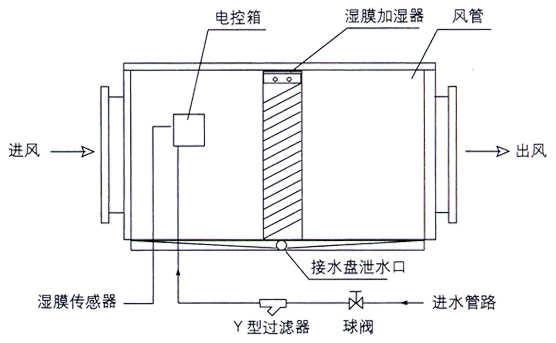

Working principle and schematic diagram
Blast pipe wet-film humidifier installs the wet-film humidifier in the humidifying blast pipe. Generally, this humidifier is used in the conditions that there is no vapor source or the vapor source is hard to introduce, and the combined air conditioner or fresh air unit has no wet-film humidifier. As the blast pipe wet-film humidifier works, clean running water enters sprayer on the top of wet-film through electromagnetic valve, the water flows down from the top and makes the wet-film humid, and dry air passes through the wet holes of wet-film and is humidified.
Blast pipe wet-film humidifier has deckle board type structure and welding type structure. As the largest side of the humidifier’s section is over 750mm, use deckle board type structure; as it is shorter than 750mm, use welding type structure.
Technical parameter table of pipeline type fan coil humidifier
| Model |
SMDG -1-0.2 |
SMDG -1-0.4 |
SMDG -1-0.6 |
SMDG -1-0.8 |
SMDG -1-1.0 |
SMDG -1-1.5 |
SMDG -1-2.0 |
| Standard humidifying capacity (kg/h) | 0.4 | 0.6 | 0.8 | 1.1 | 1.3 | 2.0 | 3.0 |
| Max ventilation(m3/h) | 200 | 400 | 600 | 800 | 1000 | 1500 | 2000 |
| Pressure loss(Pa) | <10(Pa) | ||||||
| Test condition | Air temperature of intake of humidifier is 40℃, relative humidity is 15%RH. | ||||||
| Power supply | 220V 50Hz | ||||||
Technical parameter table of blast pipe wet-film humidifier
| Model |
SMDG -2-2.5 |
SMDG -2-3.0 |
SMDG -2-4.0 |
SMDG -2-5.0 |
SMDG -2-6.0 |
SMDG -2-7.0 |
SMDG -2-8.0 |
SMDG -2-10.0 |
| Standard humidifying capacity (kg/h) | 13 | 16 | 20 | 25 | 30 | 35 | 40 | 49 |
| Max ventilation(m3/h) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 10000 |
| Input condition | Air temperature of intake of humidifier is 40℃, relative humidity is 15%RH. | |||||||
| Pressure loss(Pa) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Power supply | 220V 50Hz | |||||||
| Energy consumption | 25W | |||||||
Model description of blast pipe type wet-film humidifier
Overall size drawing of blast pipe type wet-film humidifier
| Model |
SMDG -2-2.5 |
SMDG -2-3.0 |
SMDG -2-4.0 |
SMDG -2-5.0 |
SMDG -2-6.0 |
SMDG -2-7.0 |
SMDG -2-8.0 |
SMDG -2-10.0 |
| A | 670 | 670 | 920 | 1170 | 1420 | 1670 | 1920 | 2370 |
| B | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| C | 350 | |||||||
| L | 800 | |||||||
| H | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| W | 650 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2450 |
